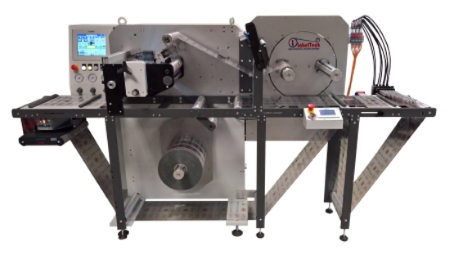

Ortles with Vajolet semi automatic turret rewinder

• Electronics motors on unwinder,nip roll and rewinders, drives and CPU from Bosch Rexroth
• Working speed up to 350m/min
• 2 speed forward and reverse jog
• unwinding and rewinding sense selectable
• energy saving
• maintenance significately reduced
• Suitable for all kind of materialssupported and non
• Job recipes storable with quick recall and favourites
• 11” pc based color touch screen display with user oriented icon interface
• Production stop with label counter, meters or final rewinding diameters
• Slow down/stop with acoustic alarm at the end of unwinder roll
• Remote assistance and live job monitoring, through ethernet or wifi connection for machine updates and to assist your job
• Connection with the company database for job managing
• 2 in 1 cutting system, to switch from rotary to razor slitters in a few seconds
• 3 web width available 330 mm, 430 mm and 530 mm

• Dual rewinder
• VAJOLET semi automatic turret rewinder
• LAVAREDO automatic slitter positioning system for both rotary and razor slitters
• FURU MMLD inspection system
• 100% inspection systems and ink jet printers interface
• Matrix and waste rewinder witrh inverter motorization
• Stroboscope lamp synchronized with rewinding speed
• Electronic servo EIGER die cut to register unit
• Lateral waste trim extractors motorized or pneumatic
• From 0,5" to 6" pneumatic mandrels
• Roll lifter , manual trolley or pneumatic integrated in the machine
• additional web guide
